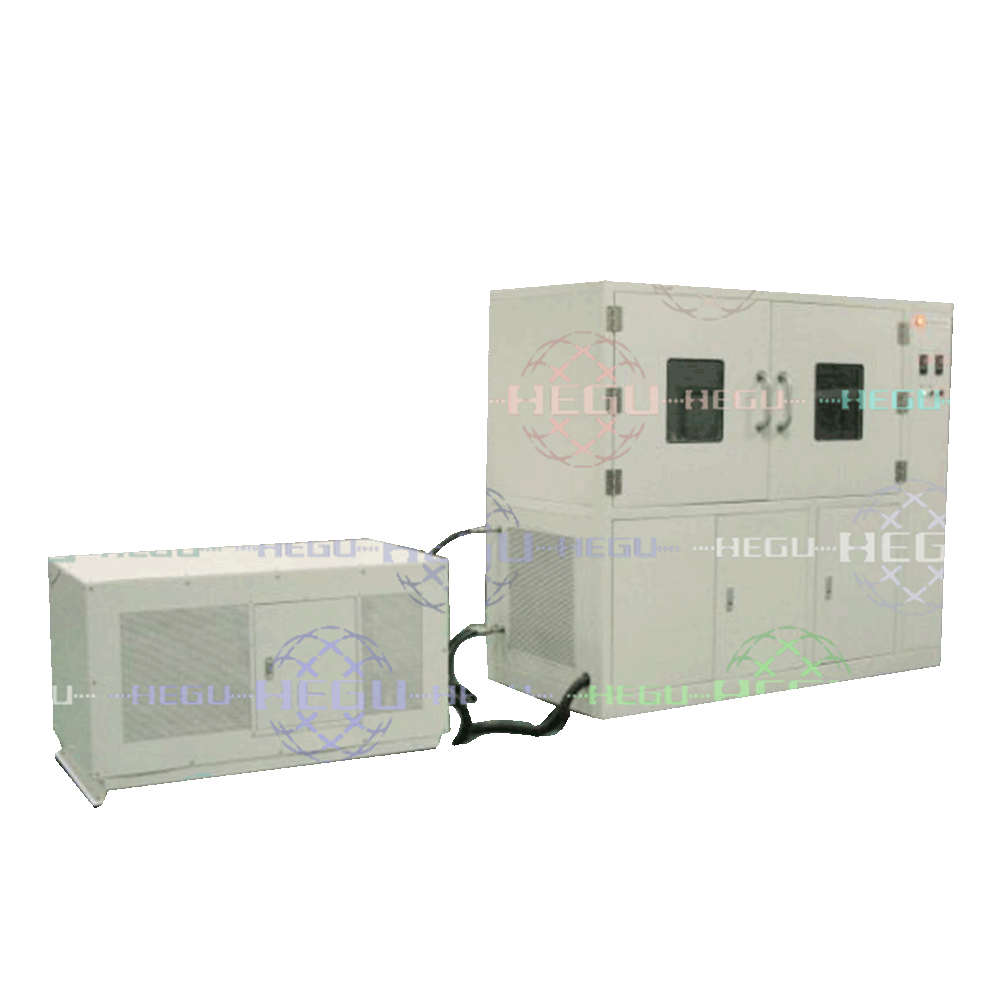

XSYM-02 High pressure hose hydraulic impluse without flexing test machine

overview :

XSYM-02 High pressure hose hydraulic impluse without flexing test machine in accordance to GB/T5568-2006/ISO6803:1994 standard, which is a standard device for test rubber, or plastic hose and hose assemblies. Impulse test and pressure test for high pressure hydraulic hose and hose assemblies, which are subjected to pulsed pressure in use.

Technical data：

Maximum consumed power
51.5kw
Power voltage
AC380V 10% 50HZ 1% (three phase five wire system)
Test temperature setting range
50-150°c
Temperature control accuracy
±3°c
Maximum number of pulses
999999time
Maximum pressure
100Mpa
Setting pulse rate
0–2Hz-500Hz
Overall dimensions
1) test bed: 2000 x 1200 x 2000;2) hydraulic pumping station :2000 x 1200x 2200 ;3)electrical control box:
900x 650 x 2000 ;4)cooling device:2500x 1200×1000.
Test fluid
According to GB/T3141-1994, the test liquid should be in accordance with the requirements of N46 at 40°c.
Sample length is calculated by the following method
1) nominal diameter of the hose on 22mm (including 22mm) according to the following formula (2)calculation of 180 DEG bending, free length = Pi r+d/2 + 2D…………… (2)
2) hose nominal diameter greater than 22mm type
(3) calculation of 90 degree bend,free length = Pi/2(r+d/2) +2d…………. (3)
R— minimum bending radius;
d—tube outer diameter
