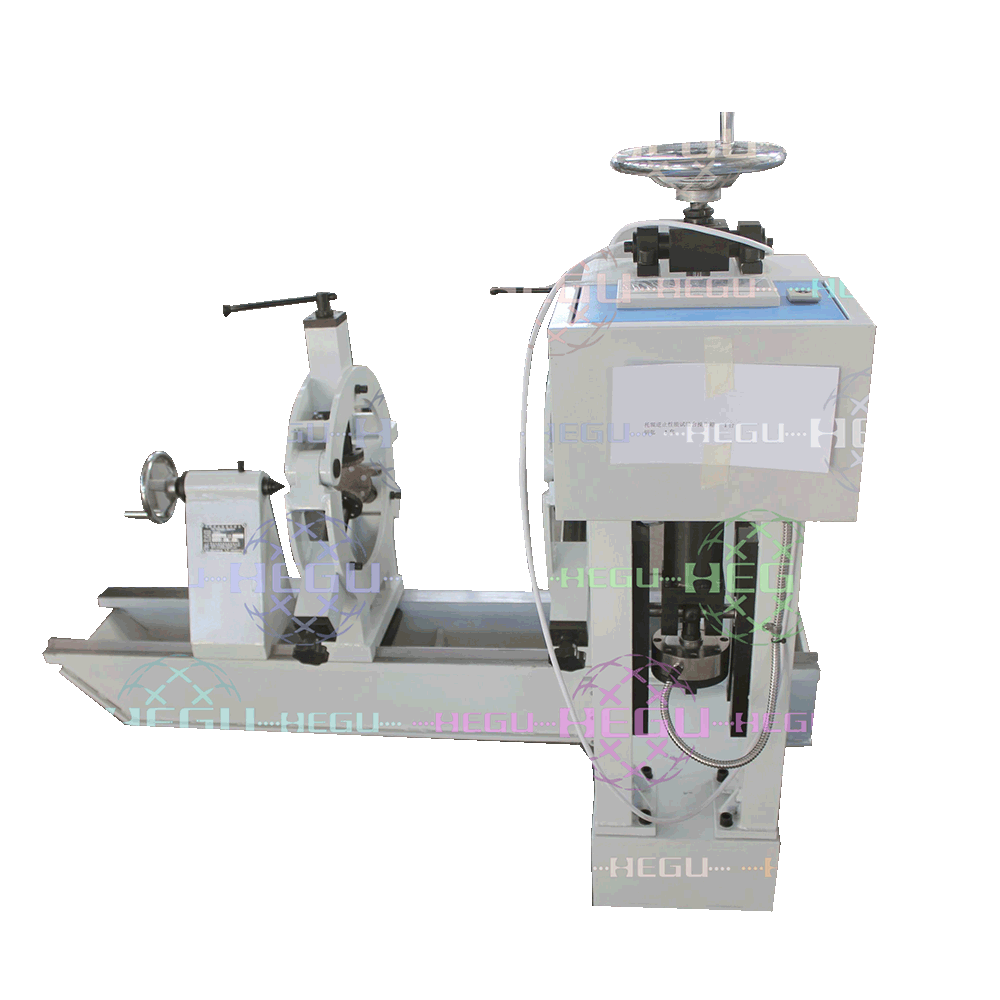

TG-NZ Roller Reverse Stop Performance Testing Machine(Computer controlled)
overview:
TG-NZ roller reverse stop performance machine control by computer,the reverse stop performance of roller is detected when a certain rotation force is applied to the rollers.The instrument is suitable for Coal mine belt conveyor roller technical requirements standard of operation requirement.The instrument is suitable for the scientific research institutions ,the conveying machine manufacturers, the quality inspection institutions and other units.
Technical data：
The measurement range of roller’s diameter |
Ф76-245mm |
The measurement range of roller’s length |
≤1000mm |
The number of rollers can be tested simultaneously |
1 |
The measurement range of sensor |
0.0-20KN |
Dimensions |
1540*890*1186MM |
Detection accuracy of sensor |
1‰ |
The roller maximum range of exert reverse stop torque |
0-5000NM |
The setting range of reverse stop test number |
0-100times |
Exert reverse stop torque detection accuracy |
0.05％ |
